Description

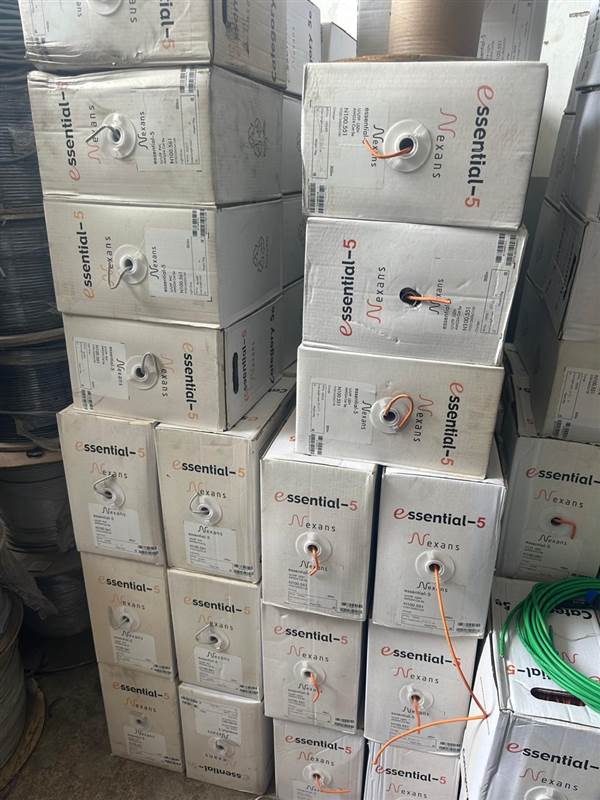

The Nexans Essential-5 Cat5e UTP Cable (305m) is a high-quality, budget-friendly LAN cable engineered to deliver stable network performance for a wide range of applications. Now available in Karachi, Pakistan, this Nexans Cat5e cable is designed for professional installers, IT integrators, and organizations seeking dependable copper cabling for everyday networking needs.
Manufactured with precise copper conductor geometry and optimized twist lengths, the Essential-5 series ensures consistent electrical performance, reduced crosstalk, and reliable connectivity for 10/100/1000 Mbps Ethernet networks. This makes it suitable for offices, residential buildings, small businesses, CCTV systems, and commercial IT environments across Karachi.
The UTP (Unshielded Twisted Pair) construction keeps the cable lightweight and easy to install, while maintaining solid performance over standard channel distances. Nexans Essential-5 is widely used in structured cabling systems, including patch panels, faceplates, network switches, and small to medium enterprise setups in Pakistan.
Whether you are deploying new LAN connections in Gulistan-e-Jauhar, wiring offices in Clifton, enhancing network performance in Saddar, or installing CCTV and access control systems across Karachi, the Nexans Essential-5 Cat5e cable provides excellent value, durability, and stable throughput.
Key Features
Cat5e compliant for 1000 Mbps Gigabit Ethernet
High-quality copper conductors for stable transmission
Reliable UTP construction for easy installation
Consistent crosstalk and noise control
305m pull box for efficient cable dispensing
Suitable for LAN, CCTV, IP phones, routers, and switches
Ideal for commercial and residential structured cabling
Typical Applications in Karachi, Pakistan
Office and home networking
Small business IT setups
CCTV and security systems
IP telephony and VoIP
Computer networking labs and educational institutes
Commercial wiring upgrades
Retail and shop network installations
Technical Specification Table
| Parameter | Specification (Typical for Nexans Essential-5 Cat5e) |
|---|---|
| Cable Category | Cat5e (ISO/IEC Class D) |
| Frequency Rating | Up to 100 MHz |
| Conductor Material | Solid Bare Copper |
| Conductor Size | AWG24 |
| Insulation Material | Polyethylene (PE) |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Number of Pairs | 4 pairs |
| Jacket Material | PVC or LSZH (depending on variant) |
| Jacket Color | Typically Blue or Grey |
| Nominal Outer Diameter | ~5.0–5.5 mm |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Mutual Capacitance | ≤ 56 pF/m |
| Operating Temperature | –20°C to +75°C |
| Installation Temperature | 0°C to +50°C |
| Minimum Bend Radius (Installed) | 4 × cable diameter |
| Minimum Bend Radius (During Installation) | 8 × cable diameter |
| Max Tensile Load | 100 N |
| Standards Compliance | ISO/IEC 11801, EN 50288-2-1, TIA/EIA-568 |
| Applications | 10/100/1000 Mbps Ethernet, LAN Networks, CCTV, VoIP |
